Succes Hackintosh macOS Mojave 10.14.5 Build 18F132 at Acer Nitro 5 AN515-52
Specification :
- Processor : Intel Core i5 8300H
- RAM : 8GB DDR4 PC21000 / 2666Mhz
- IGPU : Intel UHD 630
- eGPU : NVIDIA GTX1050
- Storage : 1x SSD Samsung Evo 512GB, 1x Hitachi 1TB
- Ethernet : Realtek RTL8168
- Wifi : Intel 7650 Wifi + Bluetooth
- USB : Intel Chipset
- Audio Codec : Realtek ALC255
- Touchpad : ELAN 0504 I2C Coffelake Chipset
- Display Size : 15 Inch
- Monitor Resolution : Full HD 1920 x 1080
- Boot Mode : UEFI
- Clover version : r4961

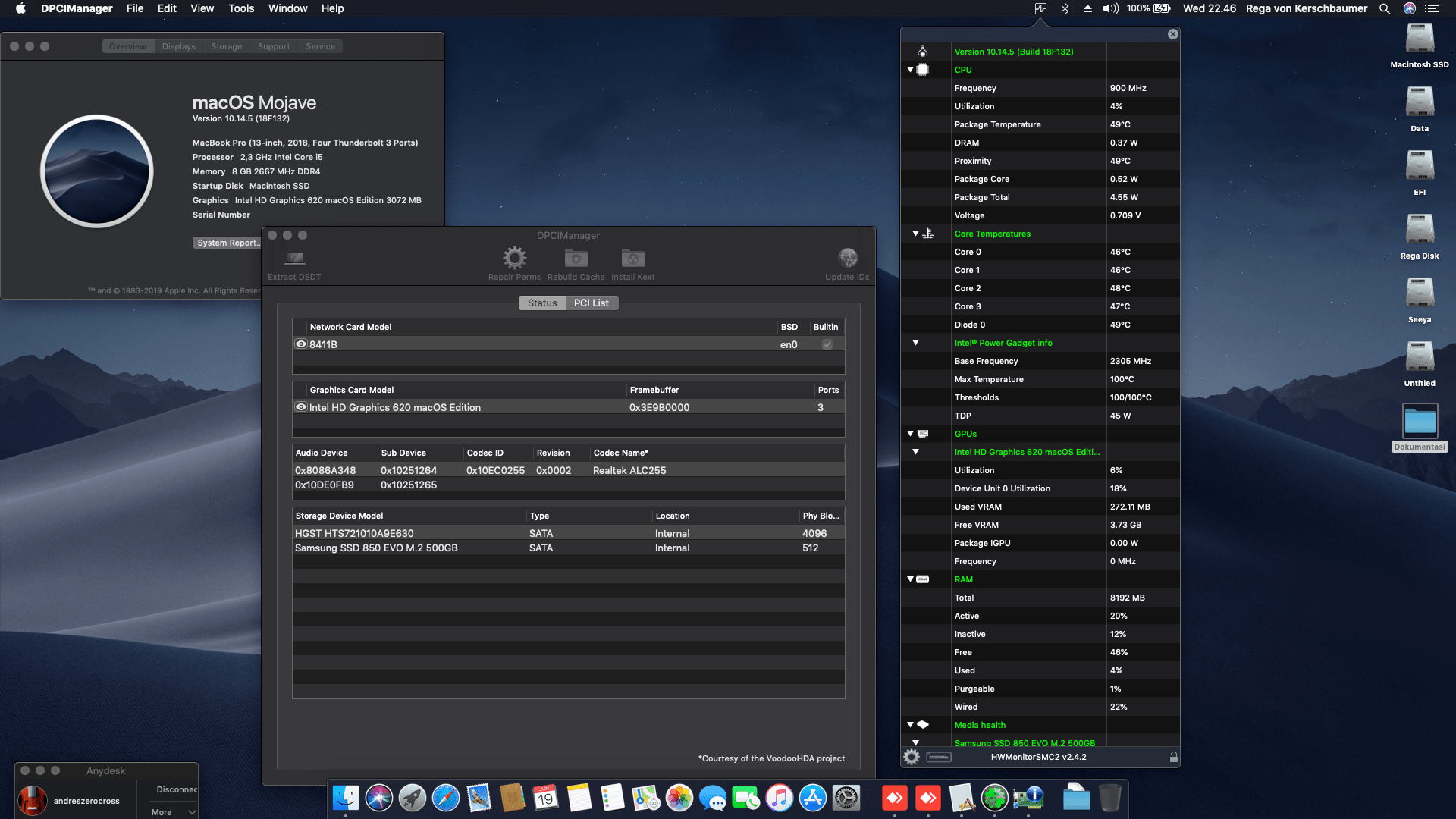

- OS Version : macOS Mojave 10.14.5 Build 18F132
What's Working??

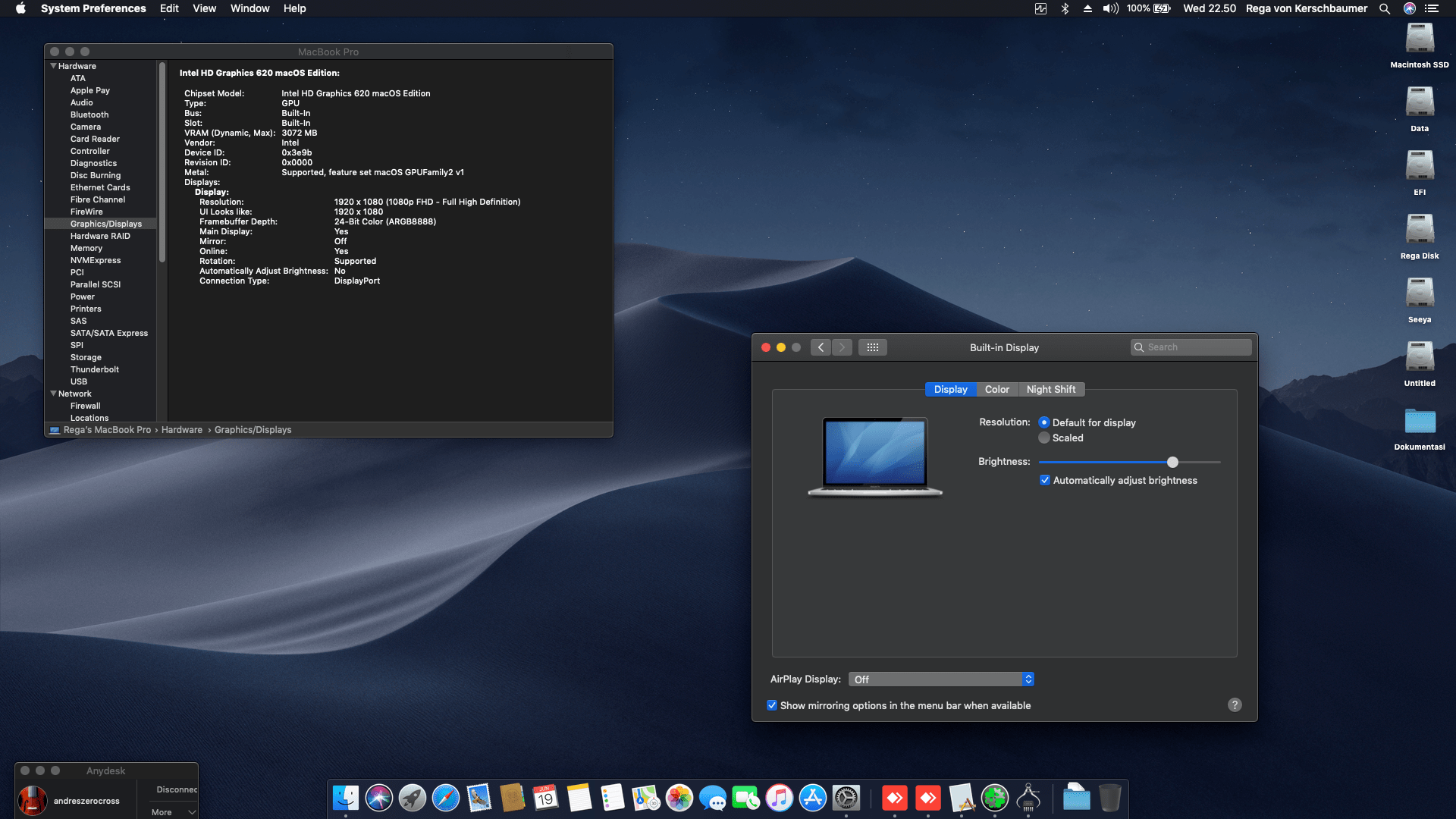

- QE/CI Graphics Of IGPU UHD 630
- Restart, Sleep and Shutdown

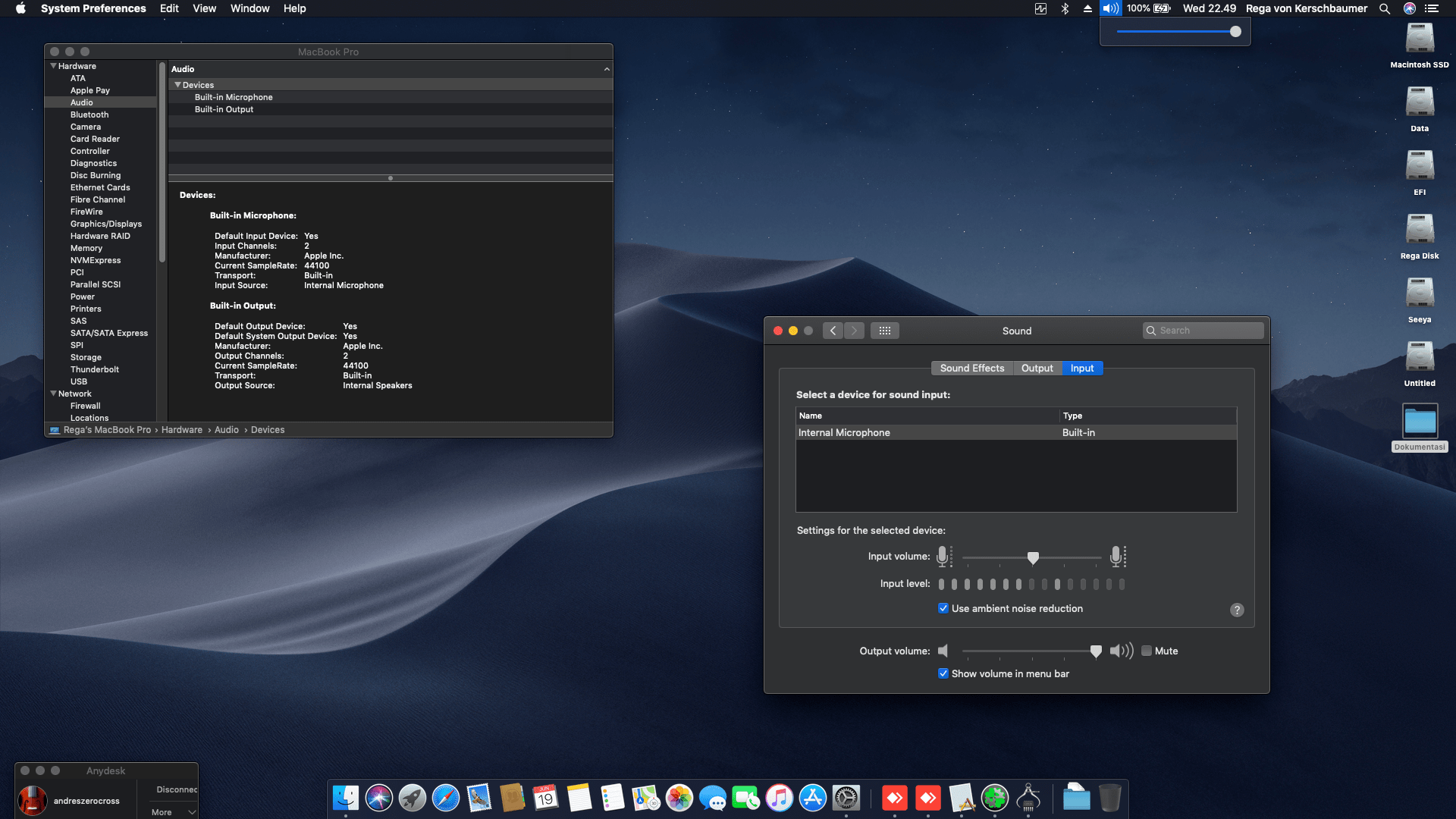

- Internal Speaker, Headphone audio and Internal Mic
- Brightness
- FN + Brightness Button Up / Down

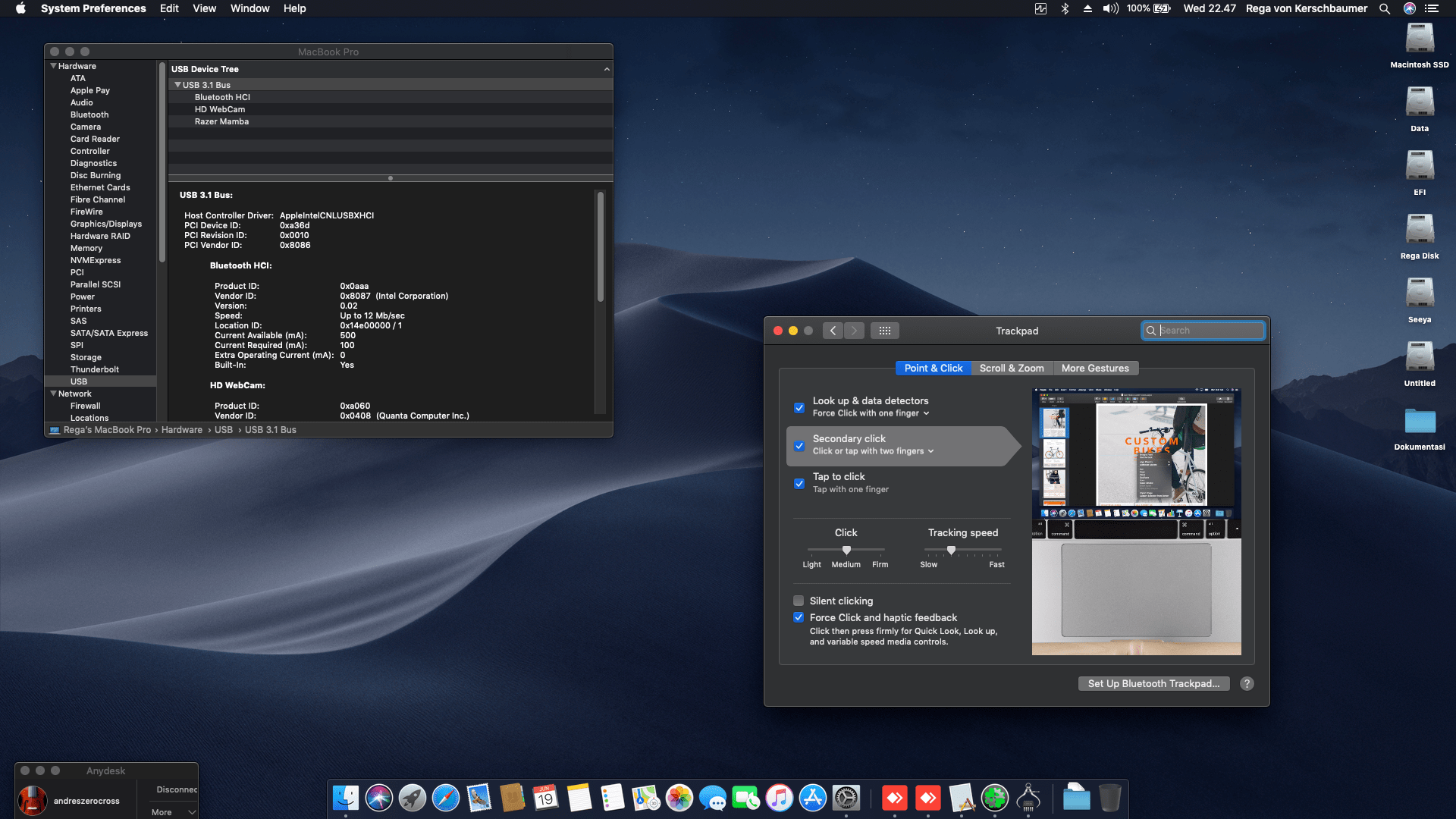

- Touchpad

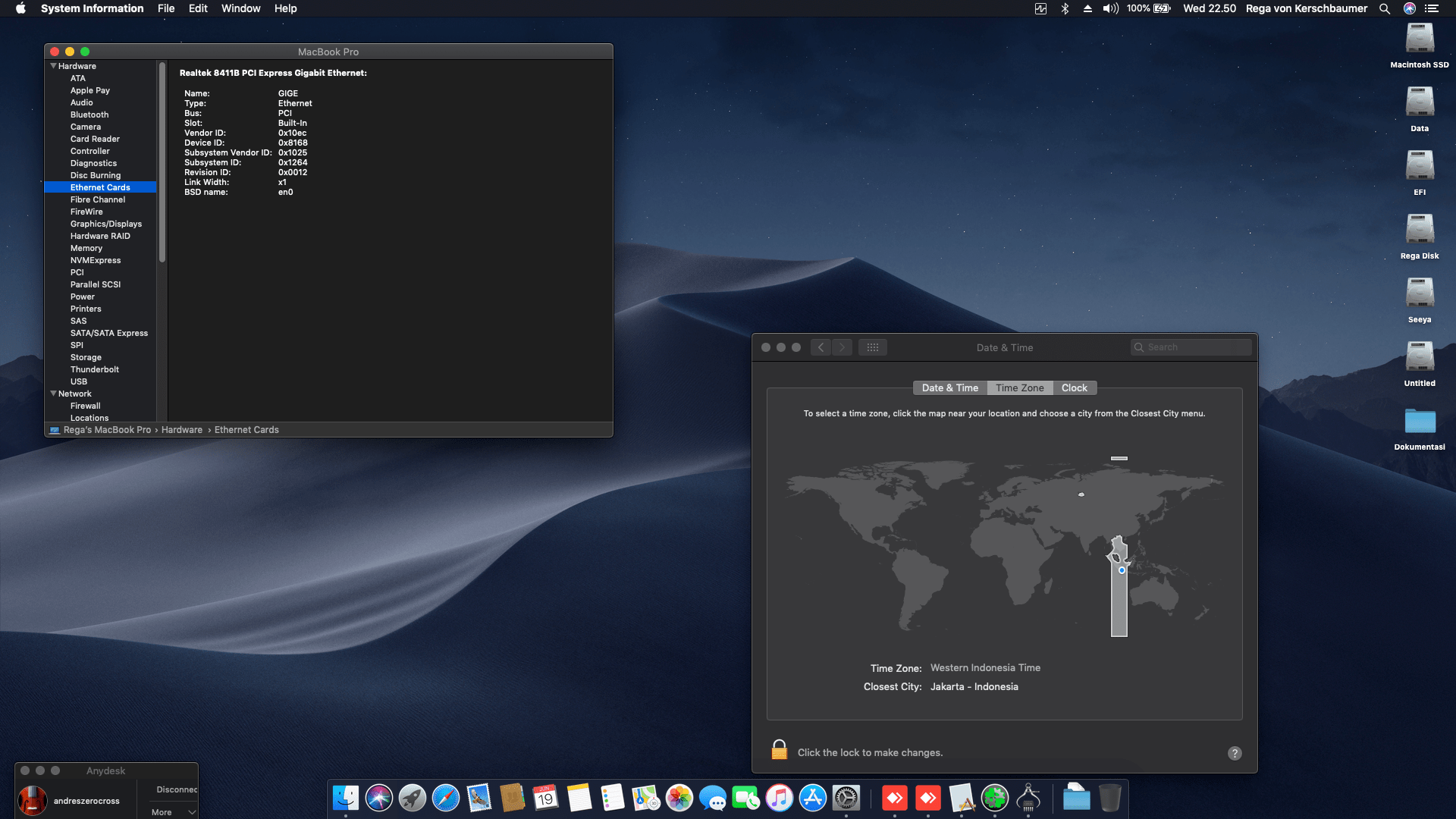

- Ethernet
- Battery Indicator
- All Port USB and Super Speed Port
- Backlight Keyboard
- Etc
What's not working?
- Nvidia GTX1050 (Nvidia GPU is disabled from DSDT, Mojave doesn't support Maxwell Nvidia)
- Intel Wifi + Bluetooth
- HDMI Output and Audio (Because Nvidia is routed to HDMI Port)
- Etc
Keep Hackitosh and Keep Hair Fall !!!
